China Glass Partition Wall System manufacturer

Anodized Aluminum Hall Acoustic Folding Partition Walls System With Ceiling Track

Product Details:
Place of Origin: Guangdong , China
Brand Name: Glawall
Certification: TUV, SGS, ISO 9001, impact test
Model Number: 66,85, 100 series
Payment & Shipping Terms:
Minimum Order Quantity: 10㎡
Price: $78-199 per square meter
Packaging Details: Paper package , wooden package
Delivery Time: 15-30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000㎡/month

Detail Information

Item: Sliding Folding Partition Stacking: Center Or Side , Remote Stacking
Materials: Anodized Aluminum Inner Structure: Aluminum Or Steel Structure
Thickness: 66,85,100mm Width: Max 1220mm
Height: Max 20000mm Soundproof: Max 56 Db
Frame: Aluminum Frame With Powder Coating Finished Options: Wood Veneer, Vinyl, Fabric Finish
Finish Color: Select From Color Swatch Warranty: 5 Years
Highlight:

Aluminum Acoustic Folding Partition Walls

,

Hall Acoustic Folding Partition Walls

,

Anodized Acoustic Partition Wall System

Product Description

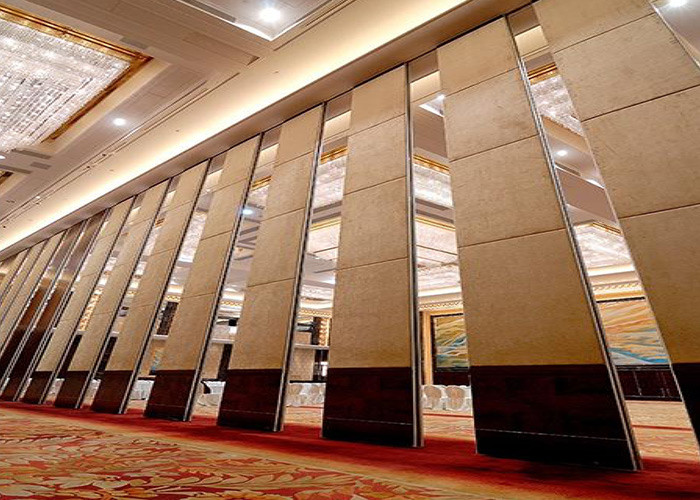

Functional Hall Foldable Acoustic Panel Foldable Partition Wall System With Ceiling Track



The conference room sound proof partitions are supported from the ceiling track, so there is no floor track to get in the way, no tripping hazard, and no gap to collect debris. When an acoustic bottom seal is required, the seal is activated from within the operable panel. Aesthetics is vital and we offer a wide range of surface and construction options for conference room sound proof partition to meet any project design and functional standards. Surface treatment options include vinyl, fabric, carpet, veneer, high pressure laminates, frescoes and other custom surfaces – MDF finish can allow customers do surface treatment on site.



The conference room sound proof partition is made of aluminum frame with excellent durability and rigidity in a wide range of challenging applications. From 2m to 15m high, 4 different thickness of aluminum frames to make sure the durable, safety and reliable operation. Melamine laminates provide innovative, durable, high-quality finish for your conference room sound proof partition. With more than 200 complete options, including wood grain, pure color, etc. You will surely find the perfect look for your sound proof partitions.

Movable partition wall

Specifications

Series GW65 GW85 GW100
Panel suspension Top hung only Top hung only Top hung only
Track system Single or twin point Single or twin point Single or twin point
Panel thickness 65mm 85mm 100mm
Panel height Up to 4000mm Up to 6000mm Up to 18000mm
Max height 4000mm 6000mm 18000mm
Panel width 600-1230mm 600-1230mm 600-1230mm
Frame construction Aluminum frame Aluminum frame Aluminum frame
Face material 9mm 9mm / 12mm 12mm
Fire safety Optional Class I or O Optional Class I or O Optional Class I or O
Vertical profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles
Retractable seals Aluminum black with
double rubber seals
Aluminum black with double rubber seals Aluminum black with double rubber seals
Operation of seals Manual, with supplied
operating handle
Manual, with supplied operating handle Manual, with supplied operating handle
Locking Optional lock to pass doors Optional lock to pass doors Optional lock to pass doors
Pass doors Single open in panel or
double open in two panel
Single open in panel or double open in two panel Single open in panel or double open in two panel
Sound insulation 20-32dB Rw 28-36dB Rw 32-56dB Rw
Weight Approx 22-35kg/sq M Approx 25-40kg/sq M Approx30-48kg/sq M
Finish Material Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)



Anodized Aluminum Hall Acoustic Folding Partition Walls System With Ceiling Track 1

Advantage:

With more economy and higher decorative, beautiful and safe, will not scratch the skin.Installation does not affect the construction of smallpox and the ground. Optional with a variety of occasions partition wall, can be customized according to customer requirements. In the re-assembly can make full use of building materials. Selection of high-quality melamine particleboard, sound insulation and sealing a good variety of accessories a variety of options.

Acoustic movable partition



Why Choose Glaswall partition company?

We are committed to providing you with products of the highest quality.

Glawall partition company consists of a strong team of technical experts who are able to meet your service need with more than two decades of experience, we have strong track records are a testament to the quality we provide. With a track record of numerous prestigious projects behind us, our team of experienced engineers is able to advise you on the best track configuration that enables you to get the most out of your space configurations!

Anodized Aluminum Hall Acoustic Folding Partition Walls System With Ceiling Track 3
