Product Details:
|
|
Place of Origin: | Guangdong , China |
---|---|
Brand Name: | Glawall |
Certification: | TUV, SGS, ISO 9001, impact test |
Model Number: | 66,85, 100 series |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 10㎡ |
Price: | $78-199 per square meter |
Packaging Details: | Paper package , wooden package |
Delivery Time: | 15-30 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 3000㎡/month |
Detail Information |
|||
Item: | Folding Partition Wall | Stacking: | Center Stacking Track |
---|---|---|---|
Materials: | Anodized Aluminum | Inner Structure: | Aluminum Or Steel Structure |
Thickness: | 66,85,100mm | Width: | Max 1220mm |
Height: | Max 20000mm | Soundproof: | Max 56 Db |
Frame: | Aluminum Frame With Powder Coating | Finished Options: | Wood Veneer, Vinyl, Fabric Finish |
Finish Color: | Select From Color Swatch | Warranty: | 5 Years |
Highlight: | Top Hanging Folding Wall Partition,Demountable Folding Wall Partition,Office Demountable Partition Wall Systems |
Product Description

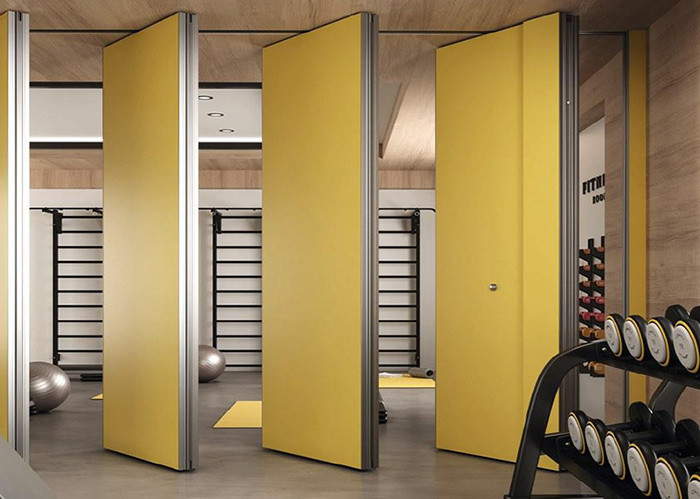

Top Hanging Demountable Partition System Folding Wall Partition Panel With Sliding Track
Within the 21st century, office designs have changed, larger open spaces are more desired among companies so that employees can communicate and work productively. Offices are not the only large open areas, bars and restaurants also benefit from larger areas. When deciding the most appropriate approach and solution two dampen the noise levels, ceilings are a good place to start. Ceilings on average usually have the largest surface area within the room; sounds are reflected off and back down. By applying acoustic panels or foam to the ceiling space you will be minimising this reflected sound and other reverberations.
Specifications
Series | GW65 | GW85 | GW100 |
Panel suspension | Top hung only | Top hung only | Top hung only |
Track system | Single or twin point | Single or twin point | Single or twin point |
Panel thickness | 65mm | 85mm | 100mm |
Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
Max height | 4000mm | 6000mm | 18000mm |
Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
Face material | 9mm | 9mm / 12mm | 12mm |
Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
Retractable seals | Aluminum black with double rubber seals |
Aluminum black with double rubber seals | Aluminum black with double rubber seals |
Operation of seals | Manual, with supplied operating handle |
Manual, with supplied operating handle | Manual, with supplied operating handle |
Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
Pass doors | Single open in panel or double open in two panel |
Single open in panel or double open in two panel | Single open in panel or double open in two panel |
Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-56dB Rw |
Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) |
There are three main configurations by which operable wall panels can stack to the side of the opening:
1)Centre Stack: Every panel hangs from a central trolley and typically hinged in pairs, perpendicular to and through the centre of a single overhead track.
2)Side Stack: Panels are hung from two carriers at the top end of each panel. When stacking, one carrier stays on the main track and the other in the side track.
3)Remote Stack: Panels have Omni-directional carriers to negotiate L or T junctions and panels are stacked entirely away from the main track.
Why Choose Glaswall partition company?
We are committed to providing you with products of the highest quality.
Glawall partition company consists of a strong team of technical experts who are able to meet your service need with more than two decades of experience, we have strong track records are a testament to the quality we provide. With a track record of numerous prestigious projects behind us, our team of experienced engineers is able to advise you on the best track configuration that enables you to get the most out of your space configurations!
