China Glass Partition Wall System manufacturer

Folding Movable Partition Walls Acoustic Meeting Room Divider Wall 66mm 85mm 100mm

Product Details:
Place of Origin: Guangdong , China
Brand Name: Glawall
Certification: TUV, SGS, ISO 9001, impact test
Model Number: 66, 85, 100 series
Payment & Shipping Terms:
Minimum Order Quantity: 10㎡
Price: $78-199 per square meter
Packaging Details: Paper package , wooden package
Delivery Time: 15-30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000㎡/month

Detail Information

Application: Meeting Room, Conference Room Color: Anodized Aluminum Color
Materials: Aluminum Frame+ Inner Acoustic Materials Top Support: Concrete Slab Or Truss Support
Thickness: 66,85,100mm Width: Within 1220mm
Height: Max 20000mm Soundproof: Max 53 Db
Finished Options: Vinyl, Laminate, Fabric, PVC, Acoustic Panel Suspension: Top Suspension Only
Floor Track: Not Needed
Highlight:

Folding Movable Partition Walls

,

Movable Partition Walls 66mm

,

Acoustic Meeting Room Divider Wall

Product Description

Folding Movable Partition Wall Meeting Room Acoustic Movable Partition Divider



Movable walls are specified where functional space delineation is an integral element within the partition project. Due to their flexibility and cost effectiveness they allow large rooms to be conveniently sub-divided to maximize space utilization. Principle applications include office interiors, meeting rooms, sports and leisure facilities, schools, colleges, churches, conference and function suites, exhibition centers, banks and restaurants.

 Movable partition wall



Type Operable wall Sound insulation 32-56db
Brand Name Glawall Partition Place of Origin Foshan city, China
Model Number TYPE65,85,100 rock wool infill 100kg/m³
Finishing option Melamine,fabric,leather,HPL,wall paper etc. Panel thickness 65, 85,100mm
Track Anodized aluminum 6063-T6 Height Max 20 meters
Main frame Anodized aluminum 6063-T6 Carrier materials Imported POM
Base board 12mm thinckness Plywood and MDF board Carrier over load 225-2000Kg

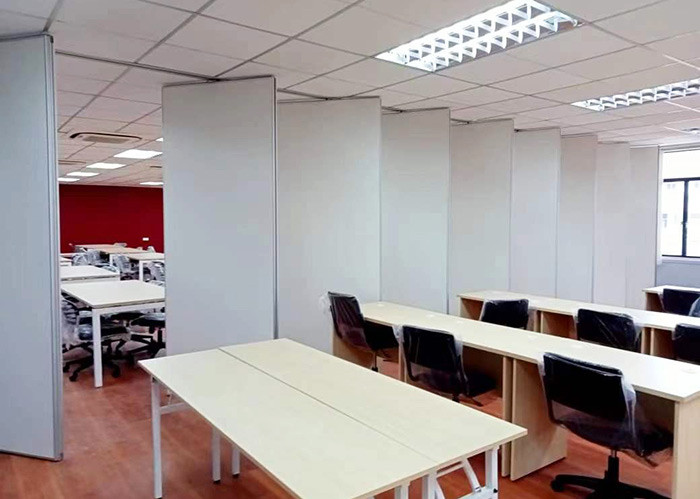

Folding Movable Partition Walls Acoustic Meeting Room Divider Wall 66mm 85mm 100mm 1

Details of the aluminum profile:

To seal the corner, Glawall gets its own design about specially developed conically shaped corner pieces that fit closely together,with high density,strong collision,is not easily deformed even at temperature - 100℃. Compared with other same industry manufacturers,Egood has great superiority in both sealing and noise insulation factor for its products.

Glawall's double,corrosion-resistant aluminum track systems are easy to install and easier to intain. Extruding enables each section to have a uniform shape for superior end-to-end alignment. Each capacity-certified track is of extruded architectural grade clear anodized 6061-T6 aluminum. It doesn't need track on the floor, we hang the track on the ceilings and it can be at the same color with  the ceiling decoration. It won't affect the whole decoration style. We can add single or double doors on the panel for convenience. Many different finishes are available to meet customer different requirements and get different decoration effects.

Folding Movable Partition Walls Acoustic Meeting Room Divider Wall 66mm 85mm 100mm 2
