Detail Information
Application:	Meeting Room, Conference Room	Color:	Anodized Aluminum Sliver Color
Materials:	Anodized Aluminum + Wooden Surface	Finishing:	Finished In Factory
Thickness:	66,85,100mm	WIdth:	Within 1220mm
Height:	Max 20000mm	Soundproof:	Max 53 Db
Style:	Europe Standard	Finished Options:	Vinyl, Laminate, Fabric, PVC, Acoustic Panel
Suspension:	Top Single Or Double Suspension	Warranty:	5 Year
Highlight:	Acoustic Meeting Room Partition Walls , Movable Meeting Room Partition Walls , Acoustic Operable Partition System

Product Description

Meeting Room Acoustic Movable Wall Partition Operable Partitioning System With Carrier

Glawall operable partition is made of a high-quality Anodized Aluminum frame with composite materials. The panel has a standard thickness of 65mm/80mm/100mm and a width up to 1230mm.

● Surface finish: HPL,melamine,fabric
● Maximum height: 17000mm
● Soundproof rate: 32-53db

● Track: Heavy duty track

● Operation:sliding and folding

● Height: Up to 15 meter

● Width: 1000-1200mm

● Color: Aluminum sliver

● Materials:6063-T6

● Application: Hotel,banquet, ballroom, meeting room, conference room etc..

Movable partition wall

Model	Weigh (kg/m)	Fire Ratin (min)	STC Perfor mance	Specification
Model	Weigh (kg/m)	Fire Ratin (min)	STC Perfor mance	Thick ness (mm)	Width (mm)	Height (mm)	Top Seal(mm) /Pressure (kg)	Bottom (mm) /Pressure (kg)	LCP stretch (mm)
GW 65	22	60	32db	65	680-1212	2000-4500	22.5/35	22.5/35	140
GW 85	27	60	38db	85	680-1212	2000-6500	22.5/35	22.5/35	140
GW 100	35	60	45db	100	680-1212	2000-17000	22.5/35	22.5/35	140

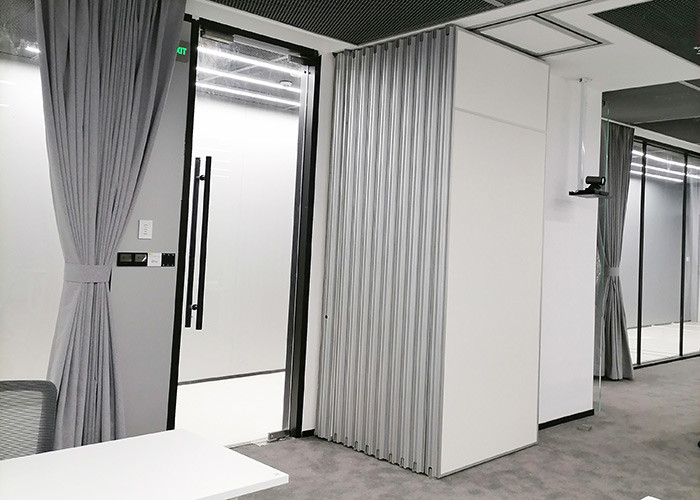

Movable Acoustic Meeting Room Partition Walls Operable Partition System With Carrier 1

1) Scope of Application

1.Studios, rehearsal rooms and more professionally inter space timbre projects.

2.Theaters, indoor gymnasiums, KTV and more performance and entertainment location.

3.Meeting rooms, offices, halls, hotels and more sound absorption and secrecy projects.

4.Banquet, hotel , party room VIP room for sound absorption and dividing.

Glawall works with Architects, designers, developers, contractors and owners in design product selection, decorative finishes, project management, and after-sales warranty services as her one-stop solution business service.

Product Details:
Place of Origin:	Guangdong , China
Brand Name:	Glawall
Certification:	TUV, SGS, ISO 9001, impact test
Model Number:	66, 85, 100 series
Payment & Shipping Terms:
Minimum Order Quantity:	10㎡
Price:	$78-199 per square meter
Packaging Details:	Paper package , wooden package
Delivery Time:	15-30 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000㎡/month
