The silent cabin can be connected to the network cable.
A network cable interface can be reserved at a suitable location in the silent cabin, and the network cable can be introduced into the cabin through a wire tube or other means. During installation, ensure that the network cable connection is stable and reliable, and consider that the wiring of the network cable will not affect the appearance and use of the silent cabin.
If necessary, network equipment such as routers can also be installed in the cabin to better allocate network resources and ensure the quality of network signals. This allows users in the silent cabin to easily access the network for office, study or other activities that require network support.
There are 2 sizes more customer choose for install equipment:
|
L size |
XL size |
Default Device |
Compatible with 100-240V/50-60HZ |
Compatible with 100-240V/50-60HZ |
Power supply system cabin 6000K/1500LM central lighting, 4000K natural light background lights on both sides |
Power supply system cabin 6000K/1500LM central lighting, 4000K natural light background lights on both sides |
Twin turbine positive pressure fresh air system: 2 air inlets + 2 air outlets |
Twin turbine positive pressure fresh air system: 3 air inlets + 3 air outlets |
Infrared response device + manual opening and closing |
Infrared response device + manual opening and closing |
Double layer 5+5mm laminated glass |
Double layer 5+5mm laminated glass |
Specification |
Cabin outer dimensions: W2300*D1785*H2326mm cabin |
Cabin outer dimensions: W2600*D2487*H2326mm cabin |
Inner size:W2160*D1745*H2146mm |
Inner size:W2462*D2447*H2146mm |
Cabin weight: net weight about 750kg |
Cabin weight: net weight about 1000kg |
Transport packaging size: 2320*1100*1265mm |
Transport packaging size: 2320*900*1265mm+2600*760*1265mm |
Note: The weight does not include the weight of supporting furniture/electrical appliances/equipment |
Note: The weight does not include the weight of supporting furniture/electrical appliances/equipment |

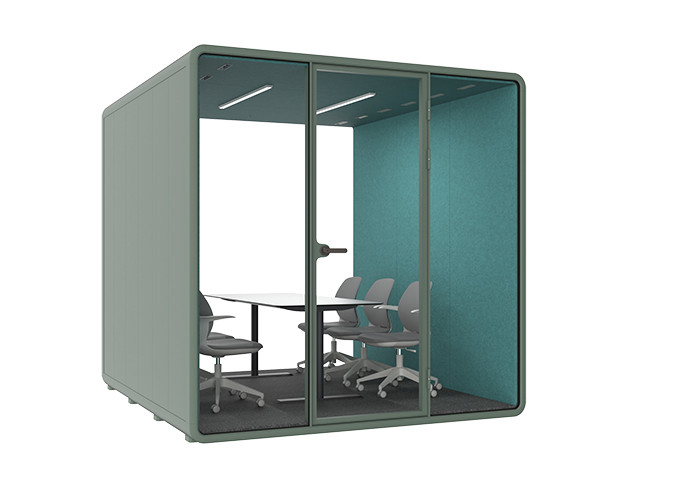

L:

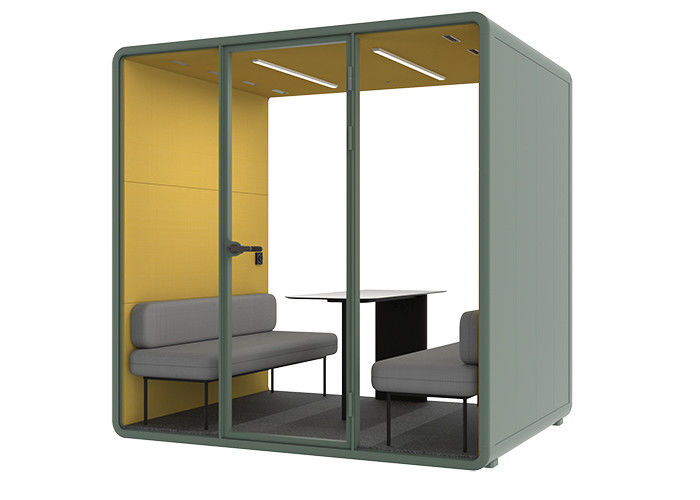

XL:


Whether in life or work, we often need a relatively quiet indoor acoustic environment, such as phone calls, business negotiations, games, live broadcasts, vocal exercises, entertainment video, etc. On the one hand, it can prevent noise from affecting others, and at the same time, it can avoid being disturbed by noise from others or the outside world. On the other hand, it can protect our language privacy. The soundproof cabin is a soundproof product specially developed to meet this need, which can provide you with a quiet "foothold".
The soundproof cabin, also called the silent cabin, can provide a comfortable sound environment without echo, ensuring that you can focus on creating, studying or relaxing. The soundproof cabin is equipped with multiple floor-to-ceiling soundproof glass walls, which maintains a certain degree of openness and light transmission, allowing you to be in it without feeling restricted or oppressive. The soundproof cabin has a built-in ventilation system, allowing you to still feel as fresh as a spring breeze in a relatively closed space environment, and maintain convection of internal and external air at all times. The soundproof cabin has a built-in adjustable lighting system to maintain appropriate illumination so that your eyes will not feel tired. In addition, a wealth of power expansion interfaces can meet the needs of various electrical equipment. The modular design of the soundproof cabin is quick to install and can be "installed and used". It can be equipped with casters to achieve a certain range of movement. When you need to give it a new home, it can be easily disassembled and reassembled.
The soundproof cabin adopts aluminum profile frame, metal shell and electrostatic spraying process, which is beautiful and elegant. The interior panels are made of environmentally friendly sound-absorbing decorative materials, which effectively control the reverberation time in the cabin and ensure good cabin sound quality. The floor is composed of a multi-layer combination of vibration isolation layer, sound insulation layer and anti-slip decorative layer to isolate the sound insulation warehouse from the structural noise transmission path on the ground. Large-area transparent glass doors and windows are made of multi-layer laminated safety glass to form a hollow structure, which is soundproof and heat-insulating. Through sophisticated processing and production technology and precise assembly and engagement design, the overall sealing performance of the soundproof cabin is very good, which provides an important guarantee for the good sound insulation effect of the soundproof cabin.
The soundproof cabin can be customized according to the required activity scene, and specific functional modules can be added to meet the corresponding usage needs. For example, sound systems, monitoring systems, soundproof curtains, effect lighting, human body sensing systems, etc.
