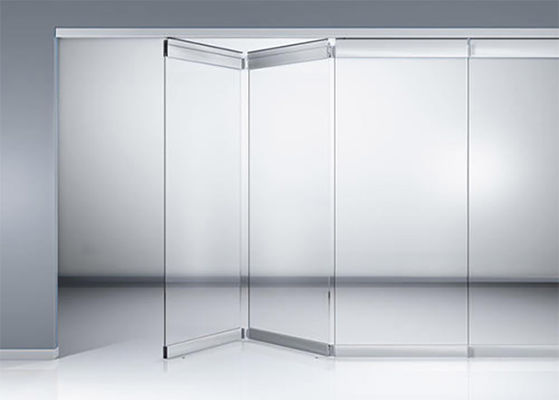

Balcony Sliding Folding Movable Glass Walls 46mm Frameless Glass Partition Systems
Balcony Sliding Folding Movable Glass Walls 46mm Frameless Glass Partition Systems

Balcony Sliding Folding Movable Glass Walls 46mm Frameless Glass Partition Systems

Product Details:
Place of Origin: Guangdong , China
Brand Name: Glawall
Certification: TUV, SGS, ISO 9001, impact test
Model Number: 46 series
Payment & Shipping Terms:
Minimum Order Quantity: 10㎡
Price: $30-99 per square meter
Packaging Details: Paper package , wooden package
Delivery Time: 15-30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000㎡/month
Contact Now

Detail Information
Applications: Office, Shopping Mall, Commercial Building Materials: Top And Bottom Aluminm Glass Clamp
Function: Removable Glass Partition Suspension: Top Track Suspension Only
Panel Joint: Concave And Convex Glass Clmap Profile Support: Fixed Steel Structure Support
Sealing: Sweep Rubber Seal Carrier System: Dupont POM Materials Carrier
Size: Customized Dimension Movable Type: Sliding And Folding
Surface: 12mm Clear Tempered Glass Thickness: 46mm
Usage: Office/Hotel/shopping Mall
Highlight:

Balcony Movable Glass Walls

,

Movable Glass Walls 46mm

,

Folding Frameless Glass Partition Systems

Product Description

Frameless Sliding Folding Glass Operable Partition In Balcony Commercial Building

Operable glazed systems are an increasingly popular and attractive sliding / folding partition option. The fully glazed screens surface are a fresh, modern and exciting way of providing effective space division without visually sectioning off areas. They are ideal for shopping malls, leisure centres, schools, offices, golf clubs, restaurants and banks. Frameless glass movable walls comprise of individual panels supported from a heavy duty head track with top and bottom aluminum clamp. Panels either stack to one side or are bi-folding.


Some of the more common types of movable glass walls include:
· Frameless movable glass wall (non-acoustic)
· Framed movable glass wall (acoustic)

Also known as non-acoustic sliding & stack glass door system. These frameless glass panels are manually operated & designed for ease of movement & flexible storage requirements.



Sliding folding glass

-Configuration
Consist of glass surrounded with top and bottom aluminum frame of 46mm thickness, visible surface height is 110mm. Each panel has top and bottom sweep seals and a 10mm clearance gap for suspension. Individual or paired panel are
available for selection. Standard aluminum frame finish in clear anodized color but it may be ordered powder coated or custom anodized.
-Track system
We provide a perfect system of aluminum tracks that can be combined with freely selectable ceiling support sections and enables panel weights up to 680kg. Special structurally tested suspension constructions for the track system ensure
a high level of safety. The combination of ball-bearing supported castors and high-quality, abrasion-proof plastic material guarantees an operational performance of more than 160km.
-Available Panel type
Regular sliding panel, fixed swing door panel, sliding swing door panel, sliding paired type panel.
-Panel connection
Each glass base panel will have a male-female profile which lock on profile side to joint more perfectly. The last panel will have a locking in surface.
Closure system
Each panel has 10mm clearance gap for suspension (total 20mm), each panel have top and bottom sweep seals
to cover the gap for sound isolation.
Locking system
Each panel has a locking bolt on female profile side which will be hidden by aluminum clamp . We need to find precise
location for every single panel in flooring ground and drill a hole to fix the bolt. When we move each panel in appointed
location, we just lock the bolt to flooring.
Installation
We need to install top track system before we install the panel. Glass panel will be pre-assemble in factory side with
complete aluminum frame and roller.

Movable glass wall

About Glawall partition company

Glawall partition company provides the perfect guidance in creating perfect spaces with our team of technical experts. Our team’s track record of 20 years would ensure that a solution for your space that is innovative, custom and of quality materials. Our international partners and past work are testament to our commitment towards continuous research and development that maintains our reputation in this specialized field.



We are the professional movable glass wall partition, frameless demountable glass partition and other office space partition wall supplier.  If any inquiry, please contact us now to design.

Balcony Sliding Folding Movable Glass Walls 46mm Frameless Glass Partition Systems 2

Our movable partition system works with Architects,designer, project manager,contractor and owners of project ect. We dedicate to supply first class quality movable partition products with reasonable price for all of our clients, making their idea come true.
